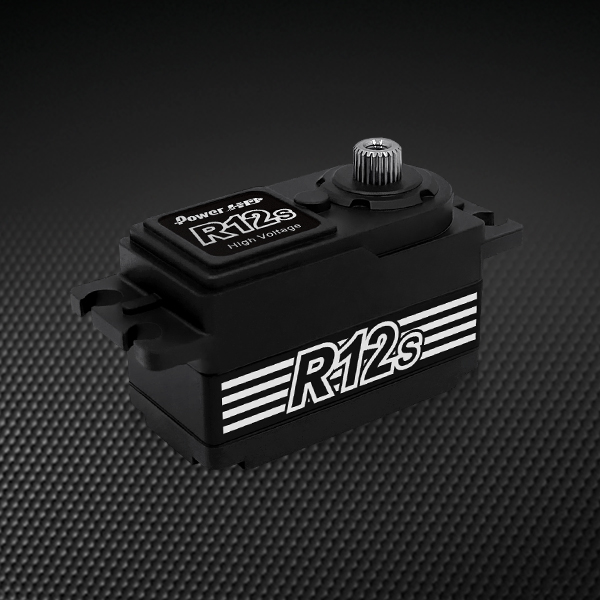

Coming from Power HD is their new R12 low-profile digital servo for 1/10th electric applications. It features straight-line gears for 30 percent higher geardtrain efficiency, it is high voltage compatible and features an overall new design. The coreless motor servo is capable of pulling up to 12kg-cm of torque at as speed down to 0.06s, making it usable for 1/10th touring, off-road and pan car applications.
Specifications:
Torque (6.0V)
|
9.0kg-cm
|
Torque (7.4V)
|
12.0kg-cm
|
Speed (6.0V)
|
0.07s
|
Speed (7.4V)
|
0.06s
|
Operating voltage
|
6.0-8.4VDC
|
Weight
|
41.0g
|
Bearing type
|
Ball bearing x 2
|
Motor type
|
Coreless Motor
|
Gear Type
|
Titanium & Aluminium
|
Working frequency
|
1520μs/333hz
|
Size
|
41.0×20.0x26.4mm
|
This Low Profile Servo from Power HD with the name R12s is one oft he most valuable servos on the market right now. It has all you need to drive your racecar to the win and the relatively low price makes this servo even more interesting for all racers!
Features:
Torque(6.0V): 9.0 kg-cm (125.0 oz/in)
Torque(7.4V): 12.0 kg-cm (166.6 oz/in)
Speed: 0.07 sec (6.0V) ¦ 0.06 sec (7.4V)
Operating Voltage:6.0 ~ 8.4 DC Volts
Weight: 41.0 g (1.45 oz)
Bearing Type:Ball Bearing x 2
Motor Type:Coreless Motor
Gear Type:Titan & Aluminum
Operating Temperature:-20?~60?
Working Frequence:1520µs / 333hz
Size:41.0 x 20.0 x 26.4 mm ( 1.61 x 0.79 x 1.04 in)
Servohorn: 25 teeht (not included)
